Description
-
-
-
Advanced BMS with current limiting function
-
CAN Bus integration with leading inverter brands (e.g., Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA)
-
Excellent high-temperature performance
-
High cycle life and service life
-
1C high-performance lithium battery
-
High energy density and conversion efficiency
-
Integrated Battery Management System
-
Compatible with most inverters and chargers
-
Low self-discharge
-
Easy wall mount or shelf rack installation
-
Built-in protection for over-charge, over-discharge, and over-temperature
ADVANTAGE LITHIUM 51.2V 200Ah
-
Similar features as above with higher capacity

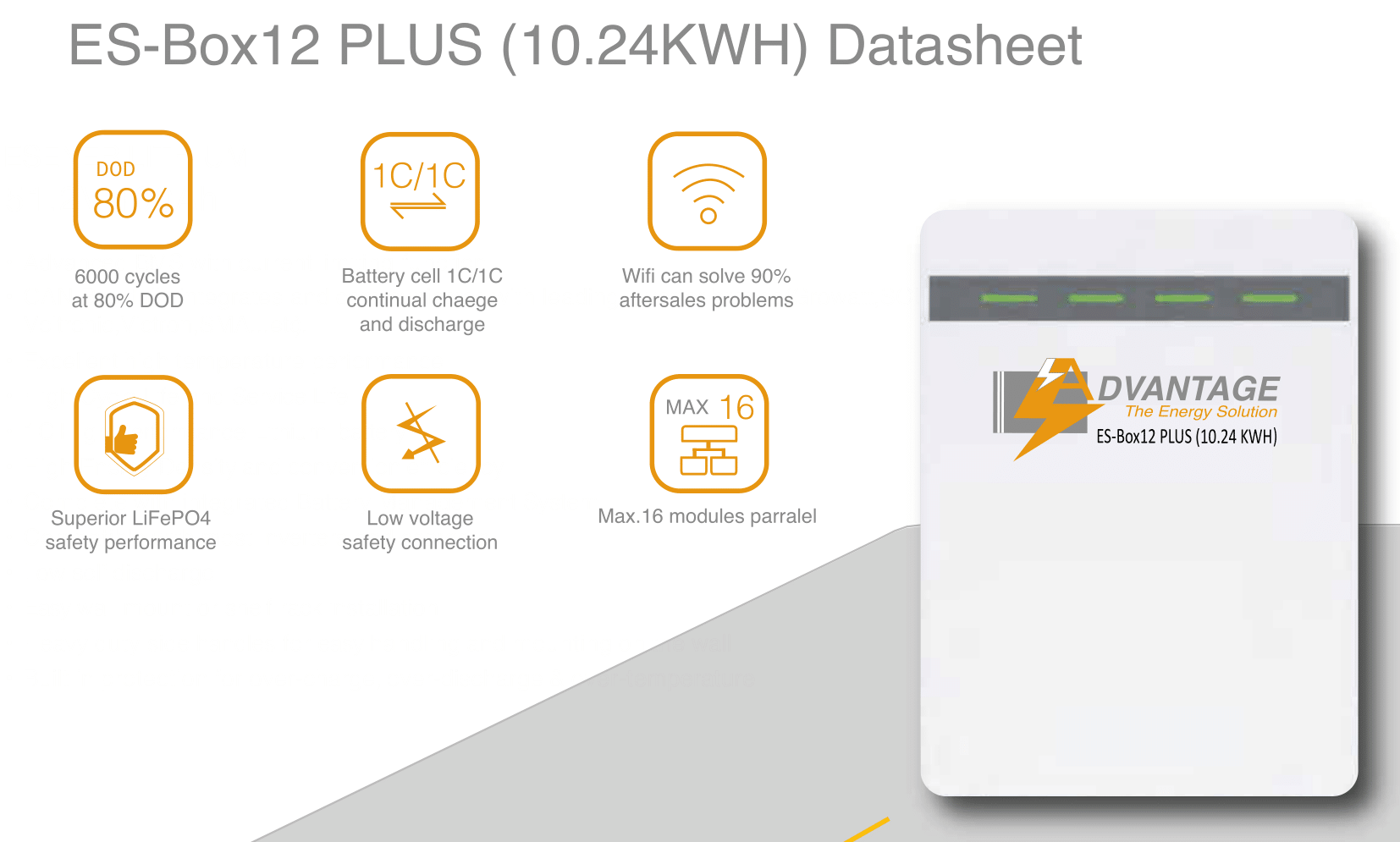

ES-Box12 PLUS (10.24KWH) Features
-
80% Depth of Discharge (DOD)
-
1C/1C continual charge and discharge
-
Up to 16 modules in parallel
-
6000 cycles at 80% DOD
-
Superior LiFePO4 safety performance
-
Low voltage safety connection
Technical Specifications
-
Model: ES-BOX12 PLUS
-
Rated Capacity (5HR): 200 Ah
-
Voltage: 51.2 V
-
Discharge Cut-off Voltage: 44.8 V
-
Standard Charge Voltage: 56 V
-
Max. Continuous Charging Current: 200 A
-
Max. Continuous Discharging Current: 150 A
-
C Rating: 1.0 C
-
Weight: Approx. 123 kg
-
Display: LCD
-
Parallel Support: Up to 16 units
-
Dimensions (WxDxH): 480mm x 650mm x 225mm
-
Ports: 1x CAN-bus, 1x RS-485, 2x Parallel Instruction ports
-
Cells: New Li-ion Prismatic cells
-
Warranty: 5 Years
-
Design Life: ±15 Years
-
Cycle Life: ≥6000 Cycles @ 80% DOD
-
Certifications: UL1642 / IEC / CE / ROHS / MSDS / UN-38.3
-
Outer Package Material: White bake lacquer steel case
-
Operating Temperature:
-
Charging: 0 to +50°C
-
Discharging: -10 to +50°C
-
Storage: -10 to +50°C
-
-
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
-
Compatible Inverters: Advantage by MegaRevo, Deye, Growatt, Sunsynk, Luxpower, Victron, SMA, Voltronic
-
-
